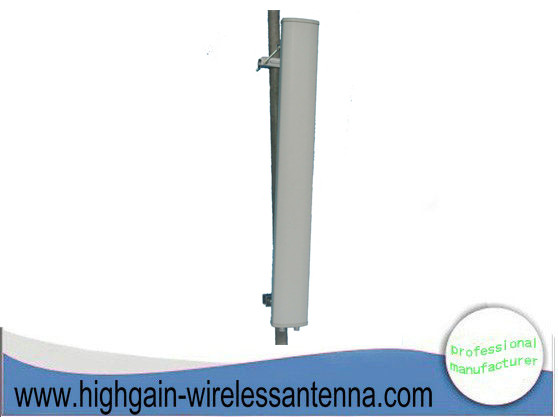

2.4 GHz Dual Polarized Directional Antenna

Product Name : Dual Polarized Directional Antenna

Feature : High Gain,Optimized dimension

Radome material : UPVC

Radome color : Gray

Application : Public wireless hot signal coverage etc

Beamwidth(0°) : H:65 V:14

Place of Origin : Shenzhen China

Brand Name : Runshine

Certification : ROSH

Model Number : RSDP-2300-2700-18

MOQ : 100pcs

Delivery Time : 1 week after received the payment

Payment Terms : TT in advance

Contact Now

High Gain WIFI Wimax LTE 4G Dual Polarized Directional Antenna 2.4GHz ISM

Feature:
● High Gain
● Full day for working
● Optimized dimension
● Dual polarization

Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● WiFi Wimax LTE 4G System

Specification

RSDP-2300-2700-18 Electric Specifications
Frequency rang	2300-2700
Polarization	±45°
Gain(DBi)	2×18
Beamwidth(0°)	H:65 V:14
F/B ratio(DB)	≥23
Input Impedance(Ω)	50
VSWR	≤1.5
Max power(W)	200
Lightning protection	DC ground
Mechanical Specifications
Connector model	2×N Female
antenna size (mm)	100011454
Packing size(mm)	1030125105
Antenna weight (kg)	4
Radome material	UPVC
Radome color	Gray
Mechanical tilt(°)	0～15
Working Temperature(°c)	-40～60
Rated Wind Velocit(m/s)	60
Pole diamete(mm)	35～75

Antenna details :

Application Example :

Install demonstration

View of us ;
