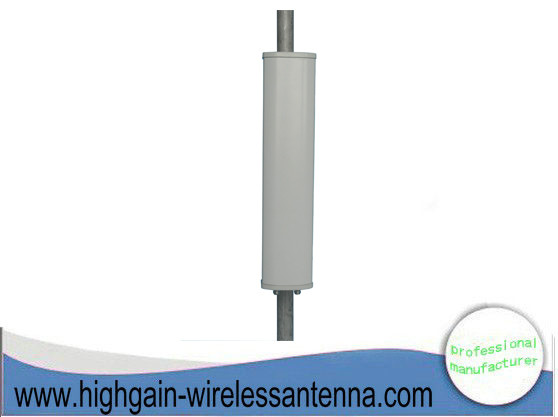

waterproof panel Dual Polarized Directional Antenna / outdoor wireless antenna

Name: waterproof panel Dual Polarized Directional Antenna outdoor wireless antenna
Brand: Runshine
Price: 1 USD

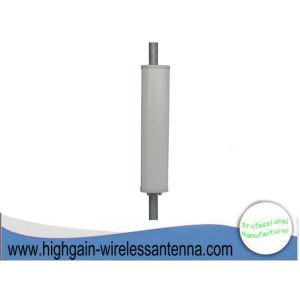

Wholesale waterproof panel Dual Polarized Directional Antenna / outdoor wireless antenna from china suppliers

Place of Origin : Shenzhen China

Brand Name : Runshine

Certification : ROSH

Model Number : RSDP-2300-2700-12

MOQ : 100pcs

Delivery Time : 1 week after received the payment

Payment Terms : TT in advance

Product Name : Dual Polarized Directional Antenna

Feature : High Gain,Optimized dimension

Radome material : UPVC

Radome color : Gray

Application : WiFi Wimax LTE System etc

Frequency rang : 2300-2700

Contact Now

waterproof panel Dual Polarized Directional Antenna / outdoor wireless antenna

Feature:

● High Gain
● Full day for working
● Optimized dimension
● Dual polarization

Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● WiFi Wimax LTE System

Specification

RSDP-2300-2700-12 Electric Specifications
Frequency rang	2300-2700
Polarization	±45°
Gain(DBi)	2×12
Beamwidth(0°)	H:120 V:15
F/B ratio(DB)	≥23
Input Impedance(Ω)	50
VSWR	≤1.5
Max power(W)	200
Lightning protection	DC ground
Mechanical Specifications
Connector model	2×N Female
antenna size (mm)	50011454
Packing size(mm)	530125105
Antenna weight (kg)	1.8
Radome material	UPVC
Radome color	Gray
Mechanical tilt(°)	0～15
Working Temperature(°c)	-40～60
Rated Wind Velocit(m/s)	60
Pole diamete(mm)	35～75

Antenna details :

Application Example :

Install demonstration

View of us ;
